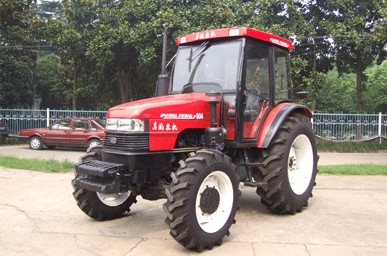

Tractor Parameters |
Model |
DF-1254 | |
|
Drive Type |
4WD | ||
|
Overall Dimensions |
4780×2327×2975 | ||
|
Wheel Track(mm) |
Front |
1860 | |
|
Rear |
1830 | ||
|
Wheel Base(mm) |
2665 | ||
|
Ground |
Under Front Axle |
478 | |
|
Rated Traction |
27000 | ||
|
Construction Mass(Kg) |
4235 | ||
|
Min. Turning Radius(m) |
4.3 | ||
|
Theoretical |
Forward |
2.30,3.60,5.80,8.00,10.0,15.6,25.0,34.9 | |
|
Reverse |
3.10,4.80,7.70,10.80 | ||
|
Engine Specifications |
Model |
LRC6108T | |
|
Type |
4-cylinder,Upright inline cylinder radiator cooling,4-storke cycle,direct-injetion |
||
|
Rated Power(Kw/hp) |
66/90.0 | ||
|
Rated Fuel Consumption(g/kw/h) |
≤242 | ||
|
Rated Speed(rpm) |
2300 | ||
|
Bore×Stroke(mm) |
108×135 | ||
|
Total Displacement(L) |
7.14/7.42 | ||
|
Drive System |
Clutch |
Dry Independent type dual Function clutch | |
|
Gear Box |
4×(2+1)×2 | ||
|
Main Drive |
One Pair of Spiral Bevel Gear | ||
|
Differential |
Obturation,four bevel gears | ||
|
Differential Lock |
Mesh gear | ||
|
Final Transmissions |
Planetary reduction gear | ||
|
Travelling Mechanism |
Tyre |
front |
14.9-26 |
|
rear |
18.4-38 | ||
|
Steering Gear |
Hydraulic streering | ||
|
Brake |
Oil immersed muliplate disc | ||
|
Working Device |
Hydraulic |
Lifting Capacity at |
2200 |
|
3-point Suspension |
Category:II | ||
|
P.T.O.Shaft |
Rotating |
540/1000 | |
|
Spline size |
6-φ35 Rectangular spline | ||
