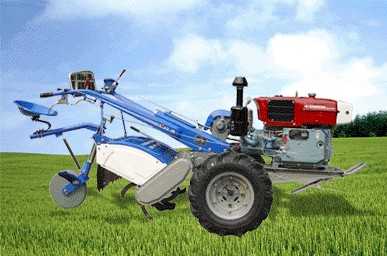

MODEL DF-12KL

Model of Power Tiller		Unit	DF-12KL
Structure weight	without rotavator	Kg	368
	with rotavator		473
Working Weight (with rotavator)		kg	508
Turning speed of rototilling shaft		rpm	188
Overall dimensions (L×W×H)		mm	2680×1030×1250
Number of blades		PCS	24
Rototilling width		mm	800
Type of tractor			Single axle,dual-purpose for both tractor &drive
Traveling speed	Forword	km/h	1.4, 2.5, 4.1, 5.3, 9.4, 15.3
	Reverse		1.1, 3.8
Tyre Size			6.00-12
Wheel track		mm	800,740,640,580(normally use 800)
Min.ground clearance		mm	185
Min.turning radius		m	0.9(with no rotavator)
Model ofengine			S195N
Type of engine			Horizontal 4-stroke
Bore×stroke		mm	95×115
Total displacement		L	0.815
Compression ratio			20:01
Turing speed of crankshaft		rpm	2000
1-hour rated output		kW/hp	9.30/12.65
12-hour rated output		kW/hp	8.30/11.29
Specific fuel consumption		g/kW.h	250
Specific lube oil consumption		g/kW.h	≤2.00
Cooling mode			Condenser(Radiator)
