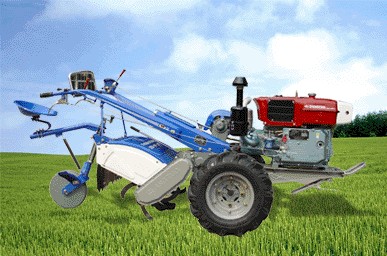

MODEL DF-15EL

Model of Power Tiller		Unit	DF-15EL
Structure weight	without rotavator	Kg	384
	with rotavator		494
Working Weight (with rotavator)		kg	529
Turning speed of rototilling shaft		rpm	188/300
Overall dimensions (L×W×H)		mm	3180×960×1250
Number of blades		PCS	18
Rototilling width		mm	600
Type of tractor			Single axle,dual-purpose for both tractor &drive
Traveling speed	Forword	km/h	1.4, 2.5, 4.1, 5.3, 9.4, 15.3
	Reverse		1.1, 3.8
Tyre Size			6.00-12
Wheel track		mm	800,740,640,580(normally use 800)
Min.ground clearance		mm	185
Min.turning radius		m	0.9(with no rotavator)
Model ofengine			S1100A2N
Type of engine			Horizontal 4-stroke
Bore×stroke		mm	100×115
Total displacement		L	0.903
Compression ratio			19.5:1
Turing speed of crankshaft		rpm	2000
1-hour rated output		kW/hp	10.50/14.30
12-hour rated output		kW/hp	9.8/13.33
Specific fuel consumption		g/kW.h	257
Specific lube oil consumption		g/kW.h	≤2.04
Cooling mode			Condenser(Radiator)
