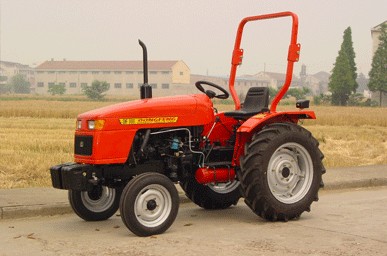

MODEL DF-300

Tractor Parameters	Model		DF-300
	Drive Type		2WD
	Overall Dimensions L×W×H(mm)		3235×1485×1536 (Height to steering wheel)
	Wheel Track(mm)	Front	1100(Usually use),1200,1300,1400
		Rear	1100(Usually use),1200,1300,1400
	Wheel Base(mm)		1705
	Ground Clearancre(mm)	Under Front Axle	420
		Under Rear Axle	378
	Rated Traction Force(N)	In Paddy Fields	4200
		In Dry Fields	6300
	Construction Mass(Kg)		1240
	Min. Turning Radius(m)		2.50
	Theoretical Speed(Km/h)	Forward	1.73,2.85,4.59,4.17,8.98,14.79,23.80,31.96
		Reverse	2.28,11.83
Engine Specifications	Model		ZN390T
	Type		3-cylinder,Upright inline cylinder radiator cooling,4-storke cycle,direct-injetion
	Rated Power(Kw/hp)		22.0/30.0
	Rated Fuel Consumption(g/kw/h)		≤255
	Rated Speed(rpm)		2500
	Bore×Stroke(mm)		90×95
	Total Displacement(L)		1.812
Drive System	Clutch		Linkage type dual-function clutch
	Gear Box		(4+1)×2,plannar 3-shaft for main transmission epicyclic gearing for auxiliary transmission
	Main Drive		One Pair of Spiral Bevel gears
	Differential		Bevel Gear
	Differential Lock		Jaw Lock
	Final Transmissions		Spur Gear,External Gearing
Travelling Mechanism	Tyre	front	5.00-15
		rear	11.2-24
	Steering Gear		Hydraulic streering
	Brake		Disk type
Working Device	Hydraulic System	Lifting Capacity at 610 mm Behind Lift Point(Kg)	496
		3-point Suspension	Category:I
	P.T.O.Shaft	Rotating Speed(rpm)	540/1000
		Spline size	6-φ35 Rectangular spline
