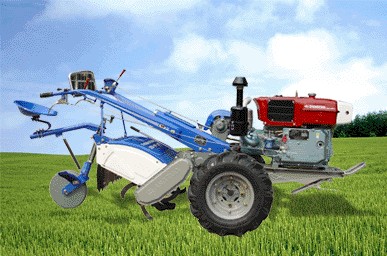

| Model of Power Tiller | Unit | DF-81BL | |
|
Type of tractor |
Single axle,dual-purpose for both tractor &drive | ||
|
Overall dimensions (L×W×H) |
mm | 2065×870×1180 | |
|
Wheel track |
mm | 680,730,780(normally use 680) | |
|
Min.ground clearance |
mm | 215 | |
|
Min.turning radius |
m | 0.9(with no rotavator) | |
|
Tyre Size |
6.00-12 | ||
|
Structure weight |
kg | 264 | |
|
Working Weight (with rotavator) |
kg | 351 | |
|
Traveling |
Forword |
km/h | 1.25, 2.54, 4.21, 5.12, 10.36, 17.19 |
|
Reverse |
2.76 | ||
|
Turning speed of rototilling shaft |
rpm | 172/235(210,288 by exchanging sprockets) | |
|
Number of blades |
PCS | 18 | |
|
Rototilling width |
mm | 660 | |
|
Model ofengine |
185N | ||
|
Type of engine |
Horizontal 4-stroke | ||
|
Bore×stroke |
mm | 85×90 | |
|
Total displacement |
L | 0.51 | |
|
Compression ratio |
21:01 | ||
|
Turing speed of crankshaft |
rpm | 2200 | |
|
1-hour rated output |
kW/hp | 6.62/9 | |
|
12-hour rated output |
kW/hp | 5.88/8 | |
|
Specific fuel consumption |
g/kW.h | 257 | |
|
Specific lube oil consumption |
g/kW.h | ≤2.04 | |
|
Cooling mode |
Condenser(Radiator) | ||
