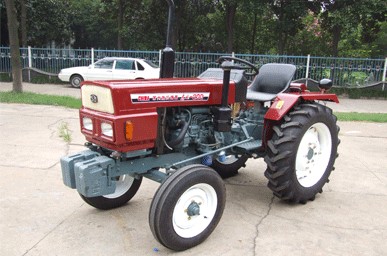

MODEL DF-200

Tractor Parameters	Model		DF-200
	Drive Type		2WD
	Overall Dimensions L×W×H(mm)		2800×1350×1460 Height steering wheel
	Wheel Track(mm)	Front	975(Usually use) 1175,1275,1375
		Rear	1020,1120,1220,1320
	Wheel Base(mm)		1619
	Ground Clearancre(mm)	Under Front Axle	400
		Under Rear Axle	290
	Rated Traction Force(N)	In Paddy Fields	3600
		In Dry Fields	5250
	Construction Mass(Kg)		1040
	Min. Turning Radius(m)		2.40
	Theoretical Speed(Km/h)	Forward	1.11,1.29,2.90,5.06,5.75,9.26,15.02,26.20
		Reverse	1.44,7.45
Engine Specifications	Model		Y380T
	Type		3-cylinder,Upright inline cylinder, radiator cooling,4-storke cycle
	12-hour Rated Power(Kw/hp)		14.7/20.0
	Rated Speed(rpm)		2400
	Bore×Stroke(mm)		80×90
	Total Displacement(L)		1.375
Drive System	Clutch		Dual-stage
	Gear Box		(4+1)×2
	Main Drive		One Pair of Spiral Bevel gears
	Differential		Bevel Gear
	Differential Lock		Jaw Lock
	Final Transmissions		Spur Gear,External Gearing
Travelling Mechanism	Tyre	front	4.00-16(stripe pattern)
		rear	8.3-24(herringbone pattern)
	Steering Gear		Full Hydraulic steering
	Brake		Disk type
Working Device	Hydraulic System	Lifting Capacity at 610 mm Behind Lift Point(Kg)	432kg
		3-point Suspension	Category:I
	P.T.O.Shaft	Rotating Speed(rpm)	540/1000
		Spline size	6-φ35 Rectangular spline
