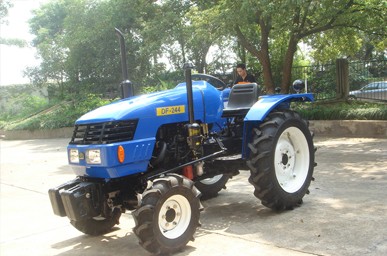

MODEL DF-244

Tractor Parameters	Model		DF-244
	Drive Type		4WD
	Overall Dimensions L×W×H(mm)		2661×1158×1365
	Wheel Track(mm)	Front	952
		Rear	1020, 1120, 1220, 1320
	Wheel Base(mm)		1574
	Ground Clearancre(mm)	Under Front Axle	290
		Under Rear Axle
	Rated Traction Force(N)	In Paddy Fields	3920
		In Dry Fields	5880
	Construction Mass(Kg)		1190
	Min. Turning Radius(m)
	Theoretical Speed(Km/h)	Forward	1.12, 1.49, 2.89, 4.81, 5.79, 7.74, 14.96, 24.94
		Reverse	1.31, 6.80
Engine Specifications	Model		KM385BT
	Type		3-cylinder,Upright inline cylinder,radiator cooling,4-stroke cycle,direct-injection
	12-hour Rated Power(Kw/hp)		17.6/24
	Rated Speed(rpm)		2400
	Bore×Stroke(mm)		80×90
	Total Displacement(L)		1.532
Drive System	Clutch		single
	Gear Box		4×(3+1)
	Main Drive		One Pair of Spiral Bevel gears
	Differential		Bevel Gear
	Differential Lock		Sliding pin,foot operated
	Final Transmissions		Planetary reduction gear sleevegear
Travelling Mechanism	Tyre	front	6.00-12 (herringbone pattern)
		rear	9.5-24(herringbone pattern)
	Steering Gear		Hydraulic steering or mechanical
	Brake		sealed shoe
Working Device	Hydraulic System	Lifting Capacity at 610 mm Behind Lift Point(Kg)	1100
		3-point Suspension	Category:Ⅱ
	P.T.O.Shaft	Rotating Speed(rpm)	540/730
		Spline size	6-φ35 Rectangular spline
