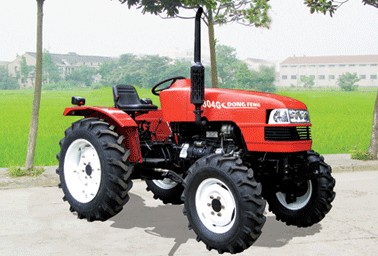

MODEL DF-304G

Parameters	Model		DF-304G
	Drive Type		4WD
	Overall Dimensions L×W×H(mm)		3400×1350×1500
	Wheel Track(mm)	Front	1200
		Rear	1050,1150,1250,1350,1450
	Wheel Base(mm)		1730
	Ground Clearancre(mm)	Under Front Axle	360
		Under Rear Axle	378
	Rated Traction Force(N)	In Paddy Fields	4850
		In Dry Fields	6800
	Construction Mass(Kg)		1327
	Min. Turning Radius(m)		2.60
	Theoretical Speed(Km/h)	Forward	1.38,2.23,3.62,6.31,7.18,11.56,18.74,32.69
		Forward(With creeper gear)	0.38,0.61,0.98,1.72,1.95,3.14,5.10,8.89
		Reverse	1.79,9.30
		Reverse(With creeper gear)	0.49,2.53
Engine Specifications	Model		ZN390T
	Type		3-cylinder,4-storke cycle,radiator cooling
	12-hour Rated Power(Kw/hp)		22.0/30.0
	Rated Speed(rpm)		2500
	Bore×Stroke(mm)		90×95
	Total Displacement(L)		1.812
Drive System	Clutch		Dual-stage
	Gear Box		(4+1)×2×2
	Main Drive		One Pair of Spiral Bevel gears
	Differential		Bevel Gear
	Differential Lock		Jaw Lock
	Final Transmissions		Spur Gear,External Gearing
Travelling Mechanism	Tyre	front	6.50-16(stripe pattern)
		rear	11.2-24(herringbone pattern)
	Steering Gear		Full Hydraulic steering
	Brake		Disk type
Working Device	Hydraulic System	Lifting Capacity at 610 mm Behind Lift Point(Kg)	475kg
		3-point Suspension	Category:I
	P.T.O.Shaft	Rotating Speed(rpm)	540/1000
		Spline size	6-φ35 Rectangular spline
