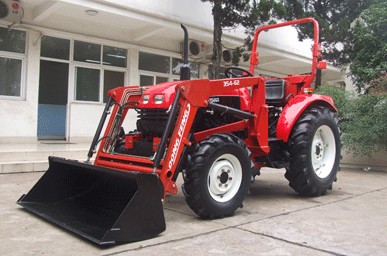

MODEL DF-354G2/404G2

Parameters	Model		DF-354G2/404G2
	Drive Type		4WD
	Overall Dimensions L×W×H(mm)		3332×1632×1575
	Wheel Track(mm)	Front	1200
		Rear	1242
	Wheel Base(mm)		1824/1856
	Ground Clearancre(mm)	Under Front Axle	358
		Under Rear Axle	403
	Rated Traction Force(N)	In Paddy Fields	5160
		In Dry Fields	7230
	Construction Mass(Kg)		1680
	Min. Turning Radius(m)		2.50
	Theoretical Speed(Km/h)	Forward	1.42, 2.06, 3.30, 4.98, 7.36, 10.65, 17.09, 25.81
		Reverse	1.43, 2.07, 3.32, 5.02, 7.41, 10.73, 17.21, 26.00
Engine Specifications	Model		TY395l
	Type		3-cylinder,4-storke cycle,radiator cooling
	12-hour Rated Power(Kw/hp)		25.8/35.0
	Rated Speed(rpm)		2400
	Bore×Stroke(mm)		95×105
	Total Displacement(L)		2.23
Drive System	Clutch		Dual-stage
	Gear Box		(4+1)×2×2 Shuttle shift syuchmesh
	Main Drive		One Pair of Spiral Bevel gears
	Differential		Bevel Gear
	Differential Lock		Jaw Lock
	Final Transmissions		Spur Gear,External Gearing
Travelling Mechanism	Tyre	front	7.50-16(herringbone pattern)
		rear	12.4-24(herringbone pattern)
	Steering Gear		Full Hydraulic steering
	Brake		Disk type
Working Device	Hydraulic System	Lifting Capacity at 610 mm Behind Lift Point(kg)	475
		3-point Suspension	Category:I
	P.T.O.Shaft	Rotating Speed(rpm)	540/1000
		Spline size	6-φ35 Rectangular spline
