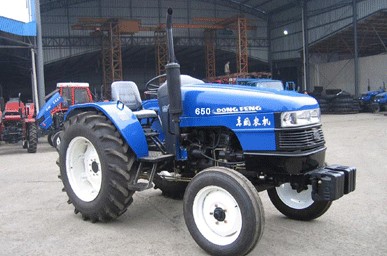

MODEL DF-650

Tractor Parameters	Model		DF-650
	Drive Type		2WD
	Overall Dimensions L×W×H(mm)		3890×1828×2400 (Height to steering wheel)
	Wheel Track(mm)	Front	1420-1620(1420)
		Rear	1450-1650(1450)
	Wheel Base(mm)		2060
	Ground Clearancre(mm)	Under Front Axle	500
	Rated Traction Force(N)		11500
	Construction Mass(Kg)		2280
	Min. Turning Radius(m)		4.0
	Theoretical Speed(no creeper)	Forward(km/h)	1.70,2.80,3.60,5.70,4.45,7.34 9.44,14.9,11.7,14.9,19.3,24.8,39.2
		Reverse(km/h)	4.50,7.50,9.60,15.20
	Theoretical Speed(with creeper)	Forward(km/h)	0.30,0.50,0.66,1.05,0.82,1.35 1.73,2.74,2.15,3.54,4.55,7.20
		Reverse(km/h)	0.83,1.37,1.76,2.79
Engine Specifications	Model		YTR4105T,LR4108T,R4105T
	Type		4-cylinder,Upright inline cylinder radiator cooling,4-storke cycle,direct-injetion
	Rated Power(Kw/hp)		48.0/65.0
	Rated Fuel Consumption(g/kw/h)		≤242
	Rated Speed(rpm)		2300
	Bore×Stroke(mm)		105×125, 108×130, 105×130
	Total Displacement(L)		4.33, 4.76, 4.5
Drive System	Clutch		Dry Linkage type dual shift Function clutch
	Gear Box		4×(3+1),sleeve, gear
	Main Drive		One Pair of Spiral Bevel gears
	Differential		Bevel Gear
	Differential Lock		sliding pin,foot operated
	Final Transmissions		planetary reduction gear
Travelling Mechanism	Tyre	front	6.50-20
		rear	14.9-30
	Steering Gear		Hydraulic streering
	Brake		Oil immersed muliplate disc
Working Device	Hydraulic System	Lifting Capacity at 610 mm Behind Lift Point(Kg)	12100
		3-point Suspension	Category:II
	P.T.O.Shaft	Rotating Speed(rpm)	540/1000
		Spline size	6-φ35 Rectangular spline
