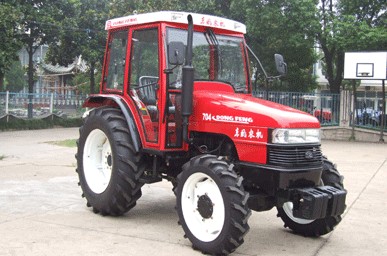

Tractor
Parameters

Model

DF-704

Drive Type

4WD

Overall Dimensions
L×W×H(mm)

3890×1828×2440 (Height to steering wheel)

Wheel Track(mm)

Front

1420

Rear

1450-1650(1450)

Wheel Base(mm)

2080

Ground
Clearancre(mm)

Under Front Axle

380

Rated Traction
Force(N)

15500

Construction Mass(Kg)

2430

Min. Turning Radius(m)

4.1

Theoretical
Speed(no creeper)

Forward(km/h)

1.70,2.80,3.60,5.70,4.45,7.34
9.44,14.9,11.7,14.9,19.3,24.8,39.2

Reverse(km/h)

4.50,7.50,9.60,15.20

Theoretical
Speed(with creeper)

Forward(km/h)

0.30,0.50,0.66,1.05,0.82,1.35
1.73,2.74,2.15,3.54,4.55,7.20

Reverse(km/h)

0.83,1.37,1.76,2.79
Engine
Specifications

Model

YTR4108T,LR4108T,R4105T

Type

4-cylinder,Upright inline cylinder
radiator cooling,4-storke cycle,direct-injetion

Rated Power(Kw/hp)

54.5/75.0

Rated Fuel Consumption(g/kw/h)

≤242

Rated Speed(rpm)

2300

Bore×Stroke(mm)

108×130

Total Displacement(L)

4.76
Drive
System

Clutch

Dry Linkage type dual shift Function clutch

Gear Box

4×(3+1)

Main Drive

One Pair of Spiral Bevel gears

Differential

Bevel Gear

Differential Lock

sliding pin,foot operated

Final Transmissions

planetary reduction gear
Travelling
Mechanism

Tyre

front

8.3-24

rear

14.9-30

Steering Gear

Hydraulic streering

Brake

Oil immersed muliplate disc
Working
Device

Hydraulic
System

Lifting Capacity at
610 mm Behind Lift
Point(Kg)

1200

3-point Suspension

Category:II

P.T.O.Shaft

Rotating
Speed(rpm)

540/1000

Spline size

6-φ35 Rectangular spline
