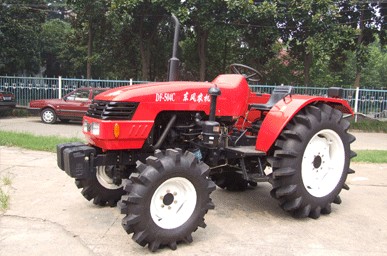

MODEL DF-504

Tractor Parameters	Model		DF-504
	Drive Type		4WD
	Overall Dimensions L×W×H(mm)		3725×1615×2170
	Wheel Track(mm)	Front	1300
		Rear	1200-1620(1300)
	Wheel Base(mm)		1908
	Ground Clearancre(mm)	Under Front Axle	367
		Under Rear Axle	469
	Rated Traction Force(N)		12500
	Construction Mass(Kg)		1920
	Min. Turning Radius(m)		4.0
	Theoretical Speed(no creeper)	Forward(km/h)	1.58,2.60,3.34,5.29,4214,6.83,8.78 13.90,10.87,17.92,23.04,36.18
		Reverse(km/h)	4.21,6.5,8.92,14.12
	Theoretical Speed(with creeper)	Forward(km/h)	N/W
		Reverse(km/h)	N/W
Engine Specifications	Model		4L68/JD4100
	Type		4-cylinder,Upright inline cylinder radiator cooling,4-storke cycle,direct-injetion
	Rated Power(Kw/hp)		36.8/50.0
	Rated Fuel Consumption(g/kw/h)		≤242
	Rated Speed(rpm)		2400
	Bore×Stroke(mm)		95×100,100×105
	Total Displacement(L)		2.86/3.3
Drive System	Clutch		Single-function,dry constant meshing
	Gear Box		4×(3+1),sleeve gear shift
	Main Drive		One Pair of Spiral Bevel gears
	Differential		Bevel Gear
	Differential Lock		sliding pin,foot operated
	Final Transmissions		planetary reduction gear
Travelling Mechanism	Tyre	front	7.5-16,8.3-20
		rear	12.4-28
	Steering Gear		Hydraulic streering
	Brake		Wet disc(Multiple)
Working Device	Hydraulic System	Lifting Capacity at 610 mm Behind Lift Point(Kg)	900
		3-point Suspension	Category:II
	P.T.O.Shaft	Rotating Speed(rpm)	540/1000
		Spline size	6-φ35 Rectangular spline
