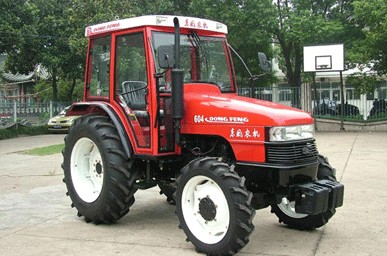

MODEL DF-604

Tractor Parameters	Model		DF-604
	Drive Type		4WD
	Overall Dimensions L×W×H(mm)		3890×1828×2400 (Height to steering wheel)
	Wheel Track(mm)	Front	1420
		Rear	1450-1650(1450)
	Wheel Base(mm)		2080
	Ground Clearancre(mm)	Under Front Axle	353
		Under Rear Axle
	Rated Traction Force(N)		14500
	Construction Mass(Kg)		2380
	Min. Turning Radius(m)		4.1
	Theoretical Speed(no creeper)	Forward(km/h)	1.63,2.70,3.47,5.49,10.29,7.07 9.10,14.40,1.26,18.57,23.88,37.80
		Reverse(km/h)	4.34,7.199.24,14.63
	Theoretical Speed(with creeper)	Forward(km/h)	0.30,0.49,0.64,1.00,0.79,1.30 1.67,2.64,.207,3.41,4.38,6.94
		Reverse(km/h)	0.80,1.32,1.70,2.69
Engine Specifications	Model		CZ4102T, YTR4105T, LR4108T
	Type		4-cylinder,Upright inline cylinder radiator cooling,4-storke cycle,direct-injetion
	Rated Power(Kw/hp)		44.1/60.0
	Rated Fuel Consumption(g/kw/h)		≤242
	Rated Speed(rpm)		2300
	Bore×Stroke(mm)		105×125
	Total Displacement(L)		4.33
Drive System	Clutch		Dry Linkage type dual shift Function clutch
	Gear Box		4×(3+1),sleeve gear
	Main Drive		One Pair of Spiral Bevel gears
	Differential		Bevel Gear
	Differential Lock		sliding pin,foot operated
	Final Transmissions		planetary reduction gear
Travelling Mechanism	Tyre	front	8.3-24
		rear	14.9-28
	Steering Gear		Hydraulic streering
	Brake		Wet disc(Multiple)
Working Device	Hydraulic System	Lifting Capacity at 610 mm Behind Lift Point(Kg)	1200
		3-point Suspension	Category:II
	P.T.O.Shaft	Rotating Speed(rpm)	540/1000
		Spline size	6-φ35 Rectangular spline
