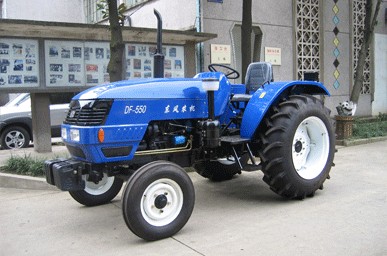

MODEL DF-550

Tractor Parameters	Model		DF-550
	Drive Type		2WD
	Overall Dimensions L×W×H(mm)		3890×1828×2400 (Height to steering wheel)
	Wheel Track(mm)	Front	1420,1520,1620
		Rear	1450-1650(1300)
	Wheel Base(mm)		2060
	Ground Clearancre(mm)	Under Front Axle	450
		Under Rear Axle
	Rated Traction Force(N)		11000
	Construction Mass(Kg)		2220
	Min. Turning Radius(m)		4.0
	Theoretical Speed(no creeper)	Forward(km/h)	1.57,2.60,3.32,5.26,4.12,6.80,8.73 13.80,10.80,17.80,22.90,36.30
		Reverse(km/h)	4.20,6.50,8.90,14.40
	Theoretical Speed(with creeper)	Forward(km/h)	0.29,0.47,0.61,0.97,0.76,1.25 1.60,2.00,2.50,3.30,4.20,6.90
		Reverse(km/h)	0.77,1.27,1.63,2.58
Engine Specifications	Model		GZ4102T/ YTR4105T/ LR4108T
	Type		4-cylinder,Upright inline cylinder radiator cooling,4-storke cycle,direct-injetion
	Rated Power(Kw/hp)		40.5/55.0
	Rated Fuel Consumption(g/kw/h)		≤242
	Rated Speed(rpm)		2300
	Bore×Stroke(mm)		102×125, 105×125, 108×130
	Total Displacement(L)		4.08/ 4.33/ 4.76
Drive System	Clutch		Dry Linkage type dual shift Function clutch
	Gear Box		4×(3+1),sleeve gear
	Main Drive		One Pair of Spiral Bevel gears
	Differential		Bevel Gear
	Differential Lock		sliding pin,foot operated
	Final Transmissions		planetary reduction gear
Travelling Mechanism	Tyre	front	6.00-16
		rear	13.6-28
	Steering Gear		Hydraulic streering
	Brake		Wet disc(Multiple)
Working Device	Hydraulic System	Lifting Capacity at 610 mm Behind Lift Point(Kg)	1200
		3-point Suspension	Category:II
	P.T.O.Shaft	Rotating Speed(rpm)	540/1000
		Spline size	6-φ35 Rectangular spline
